Roblox Studio · 第 4 课

函数与事件:制作会响应玩家触碰的互动方块

把函数、Touched 事件、Humanoid 判断和 boolean debounce 组合起来,完成一个只响应玩家、会变色并自动恢复的 TouchPad。

60 分钟 第 1—3 课后 local function Touched Connect() debounce

Course overview

真正的游戏不只是“启动时执行一次”,还要等待玩家的行动。

玩家碰到机关,门才打开;踩到终点,系统才记录完成;点击按钮,界面才变化。本课学习函数与事件,就是把“发生什么—应该响应什么”的规则写进游戏。

最终作品是一块名为 TouchPad 的互动方块:玩家角色踩上去时,它识别 Humanoid、变为金色并写入 Output;连续的身体部件接触会被 busy boolean 暂时拦住,避免重复触发。

01 · FUNCTION

动作有名字

把一组步骤放进 local function,让代码用途清楚、可重复调用。

02 · EVENT

等待事情发生

Touched 把碰到方块的 otherPart 交给处理函数。

03 · FEEDBACK

给玩家反馈

识别玩家后变色,并用 busy 防止多次有效触发。

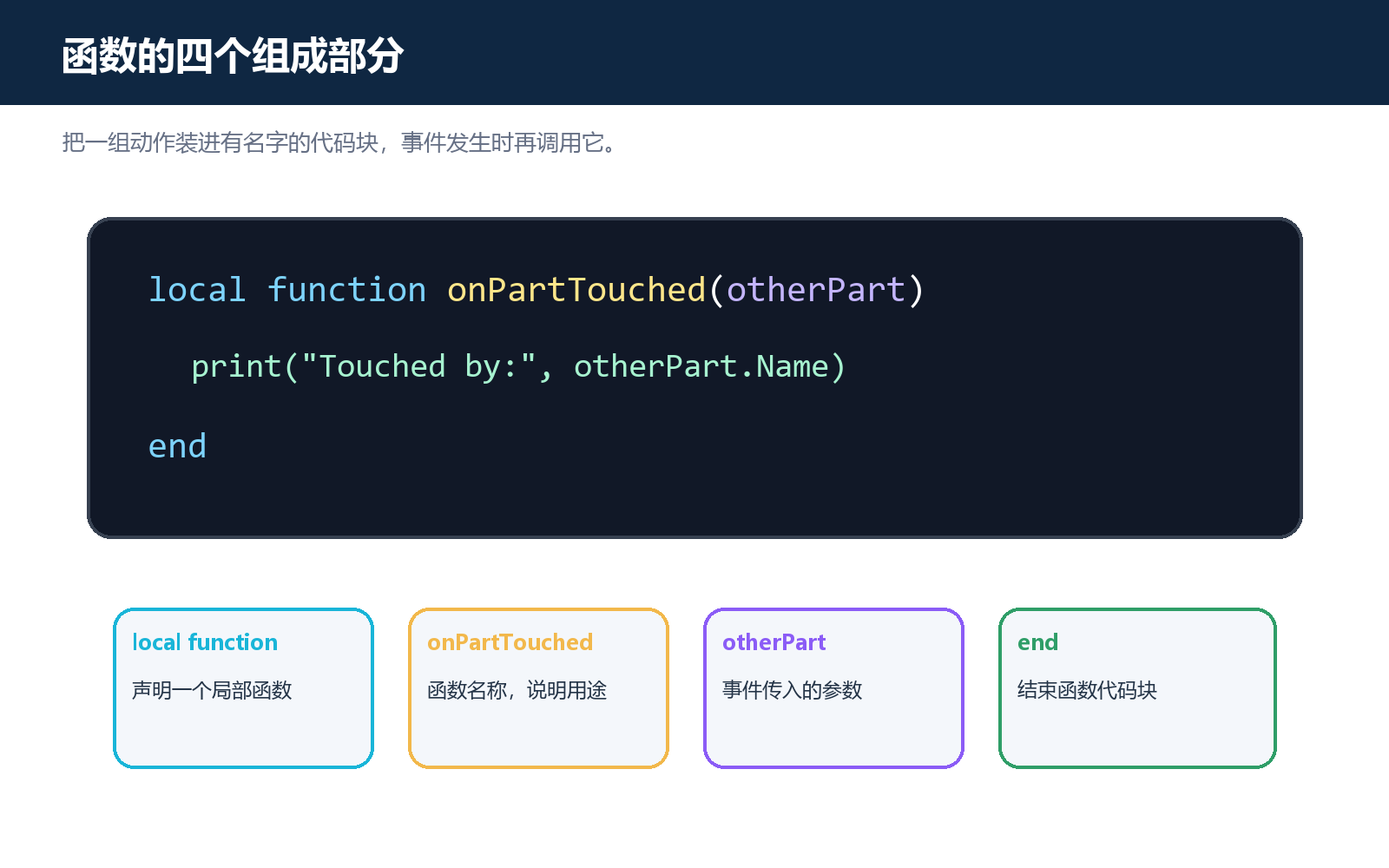

函数的声明名称参数函数体和 end 组成示意
图 4-1:函数由声明、名称、参数、函数体和 end 组成。

Learning route

先准备,再动手;看到结果后,记得保存。

每完成一小步,就测试一次。先说出你预计会看到什么,再用 Play 和 Output 检查,不用急着一次写完所有代码。

1

保存 Lesson04

从 Lesson03 副本另存,保留可运行的上一课版本。

2

理解函数

识别名称、参数、函数体、调用与 end。

3

搭建 TouchPad

设置 Anchored、CanCollide、CanTouch,并在它下面放 Script。

4

连接 Touched

使用 :Connect(onPartTouched),把函数交给事件。

5

筛选玩家

从 otherPart.Parent 查找 Humanoid,过滤普通 Part。

6

加入 debounce

用 busy 管理冷却,测试、Stop、保存 Lesson04。

Function & event

函数定义动作;事件在需要时调用动作。

函数是有名称的动作盒子。定义函数时说明它叫什么、接收什么数据、内部做什么;调用函数时才会运行。只有定义 local function sayHello(...) 和 end 不会产生输出,sayHello("Alex") 才是调用。

事件是游戏中发生的通知。Touched 发生时,会把另一个发生接触的 BasePart 作为 otherPart 参数传入。我们不需要每一帧反复检查,而是先把函数连接给事件。

连接触碰事件Luau
local touchPad = script.Parent

local function onPartTouched(otherPart)
    print("Touched by:", otherPart:GetFullName())
end

touchPad.Touched:Connect(onPartTouched)
  • 事件连接写 onPartTouched,不要写 onPartTouched()。
  • 带括号会立即调用函数;Connect 需要的是函数本身。
  • 触碰由物理运动产生,CanTouch 必须允许触碰事件。

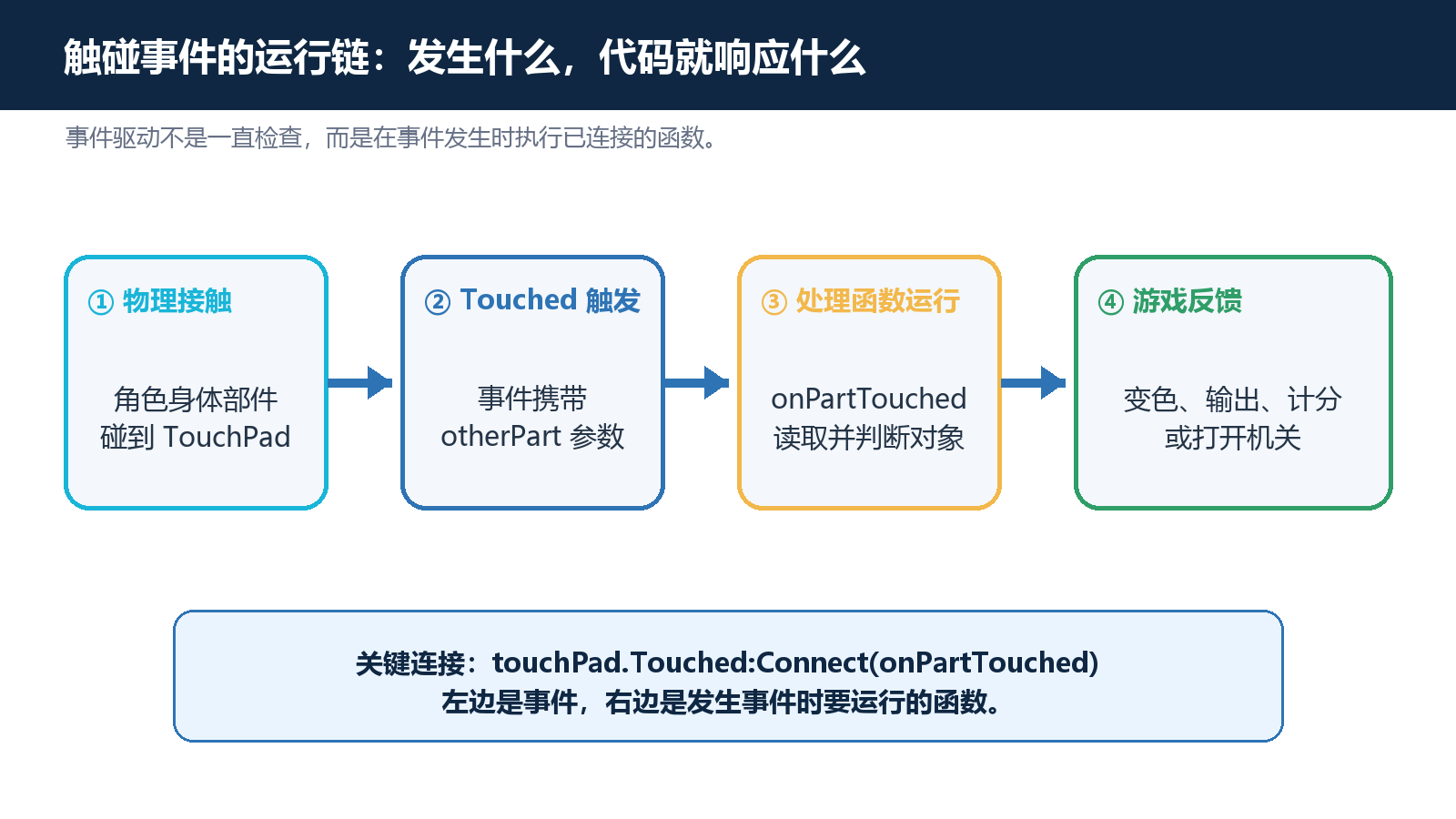

触碰事件从物理接触传到处理函数再产生反馈的图示
图 4-2:触碰发生后,事件将 otherPart 传给处理函数。
先观察,再写条件:第一轮只打印 otherPart:GetFullName()。确认传进来的真实对象后,再决定怎样筛选。

TouchPad setup

把 Script 放在 TouchPad 内,让 script.Parent 指向正确对象。

在 Workspace 插入 Part,用 Scale 制作为约 12×1×12 studs 的扁平方块。把 Anchored、CanCollide、CanTouch 都设为 true,命名为 TouchPad,并放在 SpawnLocation 前方的安全位置。

点击 TouchPad 的加号创建普通 Script,命名 TouchHandler。因为脚本是 TouchPad 的子对象,所以 script.Parent 就是要控制的方块,不必另外按名称寻找。

验证 ParentLuau
local touchPad = script.Parent
print(touchPad.Name)
  • 选择 Script,不要选择 LocalScript。
  • Play 后 Output 应显示 TouchPad。
  • 如果 Output 显示 ServerScriptService,说明脚本放错位置。
  • 测试期间不要直接改写脚本,先 Stop 再修改。
结构就是说明书:Explorer 显示 Workspace > TouchPad > TouchHandler 时,任何人都能看出这个脚本属于哪个机关。

Player filter

Touched 会响应所有接触;Humanoid 才能确认是玩家角色。

角色并不是一个单独的 Part。脚、腿、躯干和配件都可能触碰 TouchPad,所以一次走上方块可能出现多条消息。普通方块滚过来也会触发事件。我们需要从 otherPart.Parent 查找 Humanoid,只让真正的玩家角色产生反馈。

找不到 Humanoid 时会得到 nil,它在条件中视为 false。使用提前 return 能让后续有效逻辑更清楚。

只允许玩家触发Luau
local function onPartTouched(otherPart)
    local humanoid = otherPart.Parent:FindFirstChildOfClass("Humanoid")
    if not humanoid then
        return
    end

    print("Confirmed player character")
end
  • 单个 = 是赋值;两个 == 才是比较。
  • if humanoid 直接检查对象是否存在,不需要写 humanoid == true。
  • 第一个 end 结束 if,第二个 end 结束 function。
调试三层法:脚本顶部打印 started;函数第一行打印 otherPart;Humanoid 判断后打印 confirmed。哪一层没出现,问题就在哪一层。

Feedback & debounce

变色给玩家反馈;busy 让一次连续接触只算一次。

颜色反馈是最直观也最安全的结果。把 READY_COLOR 与 ACTIVE_COLOR 放在脚本顶部,之后修改主题时不必在函数中寻找多个颜色数字。运行中的颜色变化只属于 Playtest 副本,Stop 后会恢复。

多个身体部件会在很短时间内连续触发 Touched。busy 为 true 时立刻 return;确认玩家后再设为 true、变色、等待、恢复颜色,最后把 busy 设回 false。这个防重复触发思路叫 debounce。

完整 TouchHandlerLuau
local touchPad = script.Parent
local READY_COLOR = Color3.fromRGB(46, 116, 181)
local ACTIVE_COLOR = Color3.fromRGB(242, 184, 75)
local busy = false

local function onPartTouched(otherPart)
    if busy then return end

    local humanoid = otherPart.Parent:FindFirstChildOfClass("Humanoid")
    if not humanoid then return end

    busy = true
    touchPad.Color = ACTIVE_COLOR
    print(otherPart.Parent.Name, "activated TouchPad")
    task.wait(1.5)
    touchPad.Color = READY_COLOR
    busy = false
end

touchPad.Touched:Connect(onPartTouched)
  • 先检查 busy,再检查 Humanoid,然后才改变颜色。
  • task.wait(1.5) 期间的新触碰仍会调用函数,但会被 busy 挡住。
  • 不要写没有 task.wait() 的无限 while true do 循环。

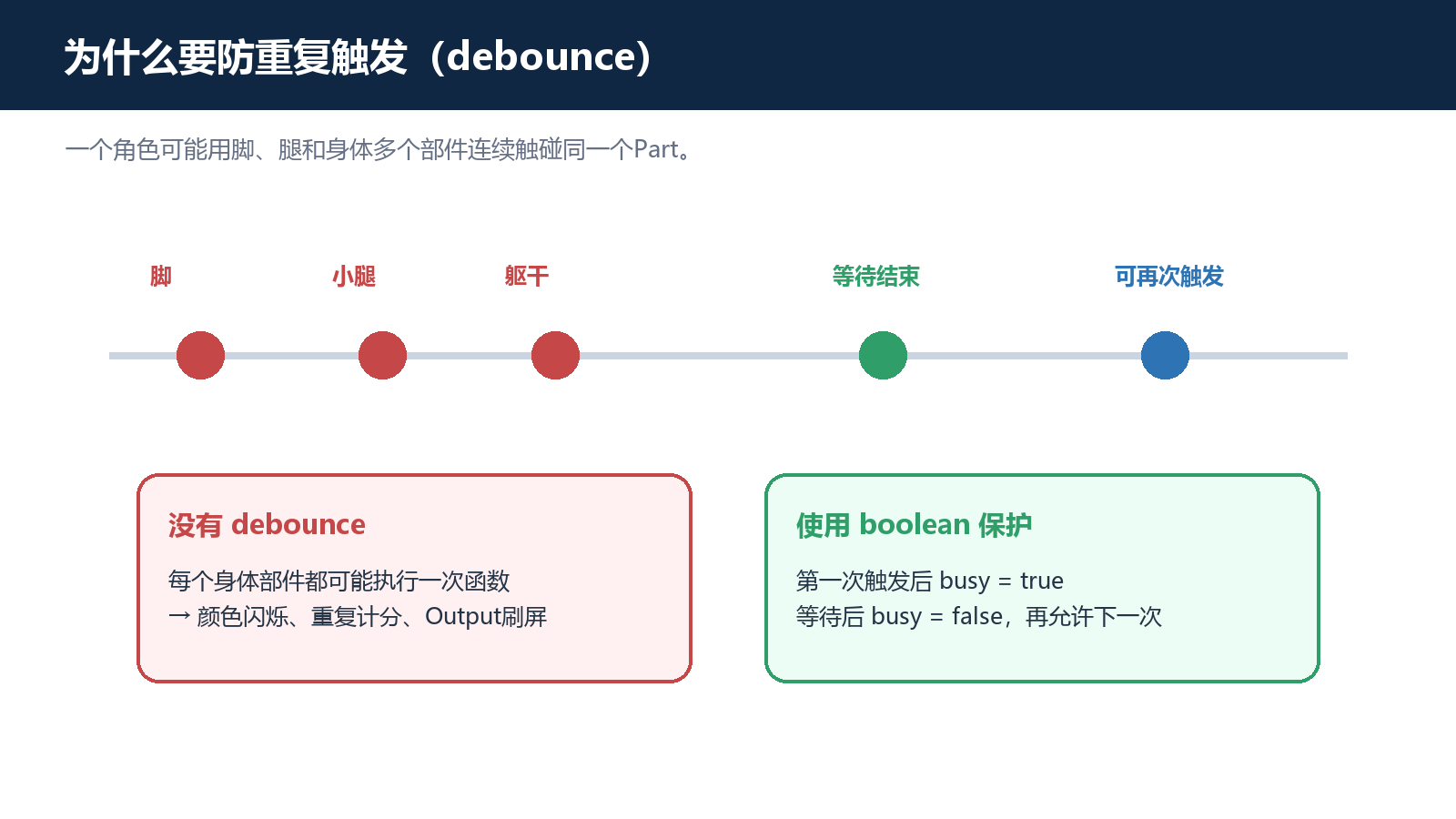

防重复触发 debounce 的处理流程图
图 4-3:debounce 在机关处理期间忽略连续的重复触碰。
测试安全:如果尝试消失平台等扩展效果,下面保留 Baseplate;每个可运行阶段先保存,再做下一次实验。

Homework

轮到你来改一改,做出自己的版本。

1 制作 FinishPad

在安全位置制作终点方块,设置 Anchored、CanCollide、CanTouch 为 true。

2 写 FinishHandler

使用 script.Parent、otherPart、Humanoid 判断和一个局部函数。

3 完成冷却测试

玩家首次触碰变绿、2 秒后恢复;普通 Part 不触发,连续触碰只产生一次有效消息。

完成标准:先在 Playtest 中验证作品,再点击 Stop,保存为“姓名缩写_Lesson04”或对应 Homework 副本;不要覆盖上一课的可运行版本。

Exit questions

先自己回答,再展开看看。

为什么连接事件时不能写 onPartTouched()?

括号会立即调用函数;Connect 需要接收函数本身,等事件发生后再调用。

otherPart 是什么?

Touched 事件传入的、与 TouchPad 发生接触的另一个 BasePart。

Humanoid 判断解决什么问题?

它让机关只响应玩家角色,而不是任意普通 Part。

busy boolean 的作用是什么?

在冷却期间阻止连续身体部件触碰重复执行同一段有效逻辑。
